One Year Goof Proof Warranty
All TCS decoders are covered by a one year goof proof warranty

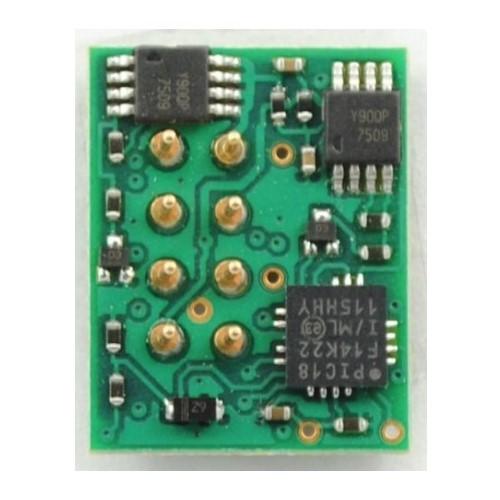

The DP5 is a HO-Scale direct-plug decoder designed for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP5 can be plugged into many locomotives with no effort. The DP5 has 5 available lighting functions, and has been tailored to work with Atlas Silver Series engines. This decoder will also fit many other engines with 8-pin NMRA sockets, including KATO and Athearn where additional lighting functions are needed. An excellent choice for engines with ditch lights!

Features:

• Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
• Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
• DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
• Variable Momentum: Allows you to make custom acceleration and deceleration curves.
• Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
• Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
• Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible: Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables: Configure custom speed curves and set speed limits.

• Interface Type: Direct-Plug (8-Pin NMRA)
• Dimensions (L x W x H): 0.509" x 0.636" x 0.104" or 12.92mm x 16.15mm x 2.64mm
• Scale: HO Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 5
• Function Rating: 80 mA
• 12V Outputs: 5
