Plug-and-play format suitable for use with a variety of models

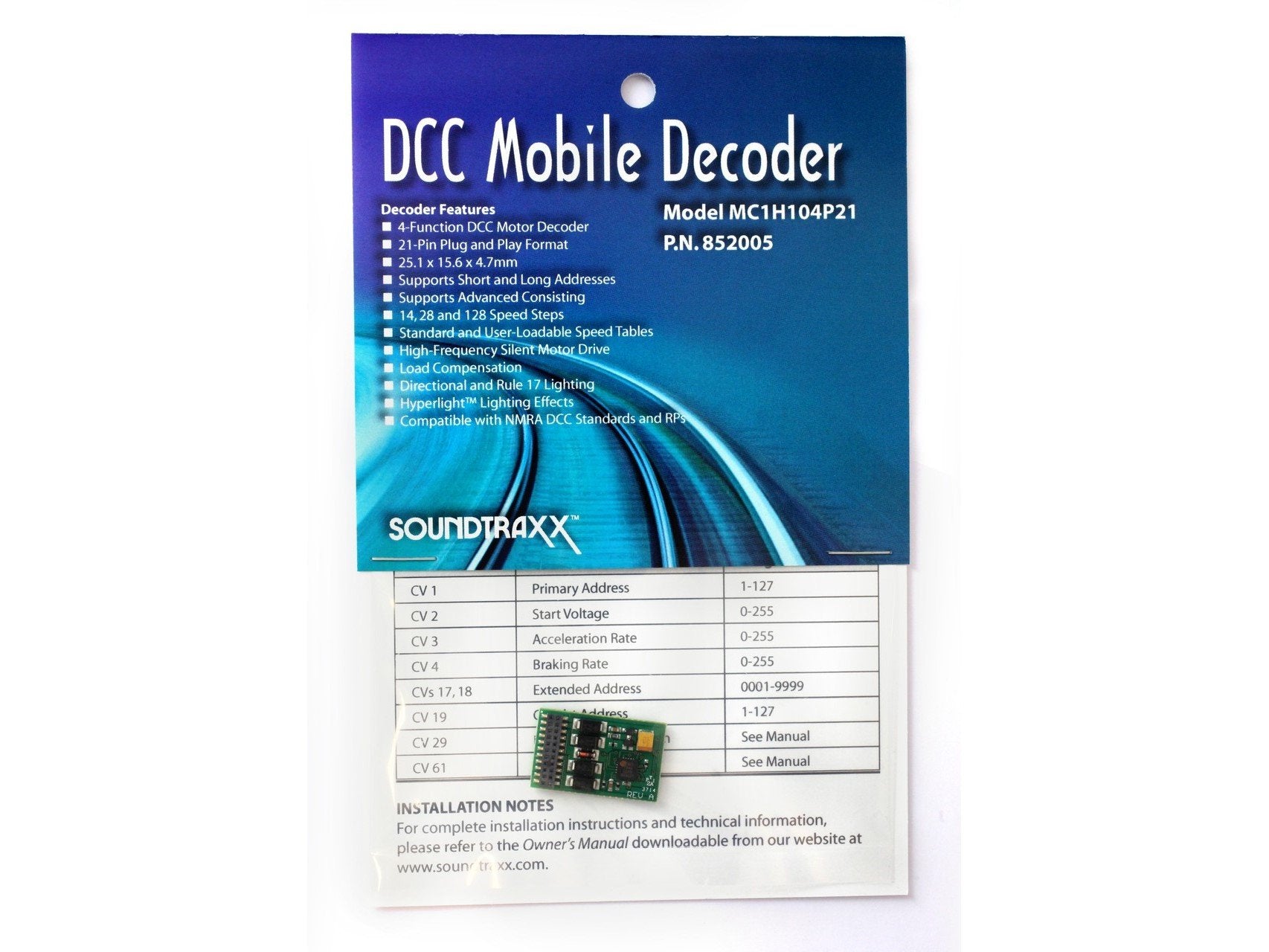

HO-scale, 4-function decoder that measures 25.1 x 15.6 x 4.7mm. This decoder has a 21-pin connector arranged according to the NMRA Standard that easily plugs into the factory-installed PCB of many models.

Please Note: This decoder will operate in DCC only, it does not allow for Analog operation


SPECIFICATIONS

• Dimensions: 25.1 x 15.6 x 4.7mm
• Max. Motor Stall Current: 1A
• Max. Function Current: 100mA (each output)
• Function Outputs: 4
• DCC Track Voltage: 21 Volts Maximum
• Top-Notch Technical Support Available directly from the Manufacturer
• Model Train Market is an Authorized Soundtraxx Dealer so your purchase is Guaranteed!

Feel free to ask us which decoder would be best and you can also consult the SoundTraxx Decoder Selector
